Introduction: The Critical Infrastructure of Modern Healthcare
In the rapidly evolving landscape of Saudi Arabia’s healthcare sector under Vision 2030, the complexity of hospital infrastructure has reached new heights. Among these critical systems, Medical Gas Pipeline Systems (MGPS) stand out as the most vital. These systems are far more than a simple network of pipes; they are life-support conduits integrated into the very fabric of the building to ensure the continuous and safe delivery of life-saving gases.
In this high-stakes environment, Sanad Medical has emerged as a premier strategic partner. With deep technical expertise in designing and executing medical gas systems, Sanad Medical ensures that every project meets the most rigorous precision and safety standards. By addressing technical and operational gaps before they arise, the company has become the first choice for major healthcare projects across the Kingdom.
The Strategic Importance of MGPS in the Saudi Context
As Saudi Arabia builds a world-class healthcare ecosystem, the demand for advanced engineering solutions is skyrocketing. Whether in the massive medical cities of Riyadh or the futuristic clinics of NEOM, the focus is on patient safety. Designing an MGPS that adheres to international codes is no longer optional—it is a mandatory requirement for licensing and accreditation by the Ministry of Health (MOH) and the Saudi Central Board for Accreditation of Healthcare Institutions (CBAHI).
What are Medical Gas Pipeline Systems (MGPS)?
An MGPS is an integrated engineering network designed to store, regulate, and distribute medical gases from a central source to clinical points of use. These networks are essential in:
- Operating Rooms (OR): Providing anesthesia and life support.
- Intensive Care Units (ICU, NICU, PICU): Constant oxygenation for critical patients.
- Emergency Departments: Immediate resuscitation capabilities.
- Laboratories and Imaging Suites: Specialized gases for diagnostic equipment.
Essential Gases Distributed in Modern Hospitals
A robust MGPS must handle several distinct fluids, each with specific chemical properties and engineering requirements:
1. Medical Oxygen (O_2)
The most widely used gas, essential for respiratory therapy and anesthesia. In large-scale Saudi hospitals, this is typically stored in vacuum-insulated evaporators (VIE) or liquid tanks.
2. Medical Air (Medical Air)
Produced via specialized medical air compressors. This gas must be meticulously filtered to be free of moisture, oils, and particulates, ensuring it is safe for mechanical ventilation and anesthesia machines.
3. Nitrous Oxide (N_2O)
Primarily used in surgical anesthesia. Due to its properties, it requires strict regulation and fail-safe monitoring.
4. Medical Vacuum (Vacuum)
A critical system for removing fluids and gases during surgeries and emergency procedures. Unlike gas delivery, this is a suction system that must maintain consistent negative pressure.
Technical Components of a High-Tier System
A system executed by Sanad Medical comprises several high-tech layers:
- Central Gas Sources: Including liquid oxygen tanks, medical air plants, and vacuum pump sets.

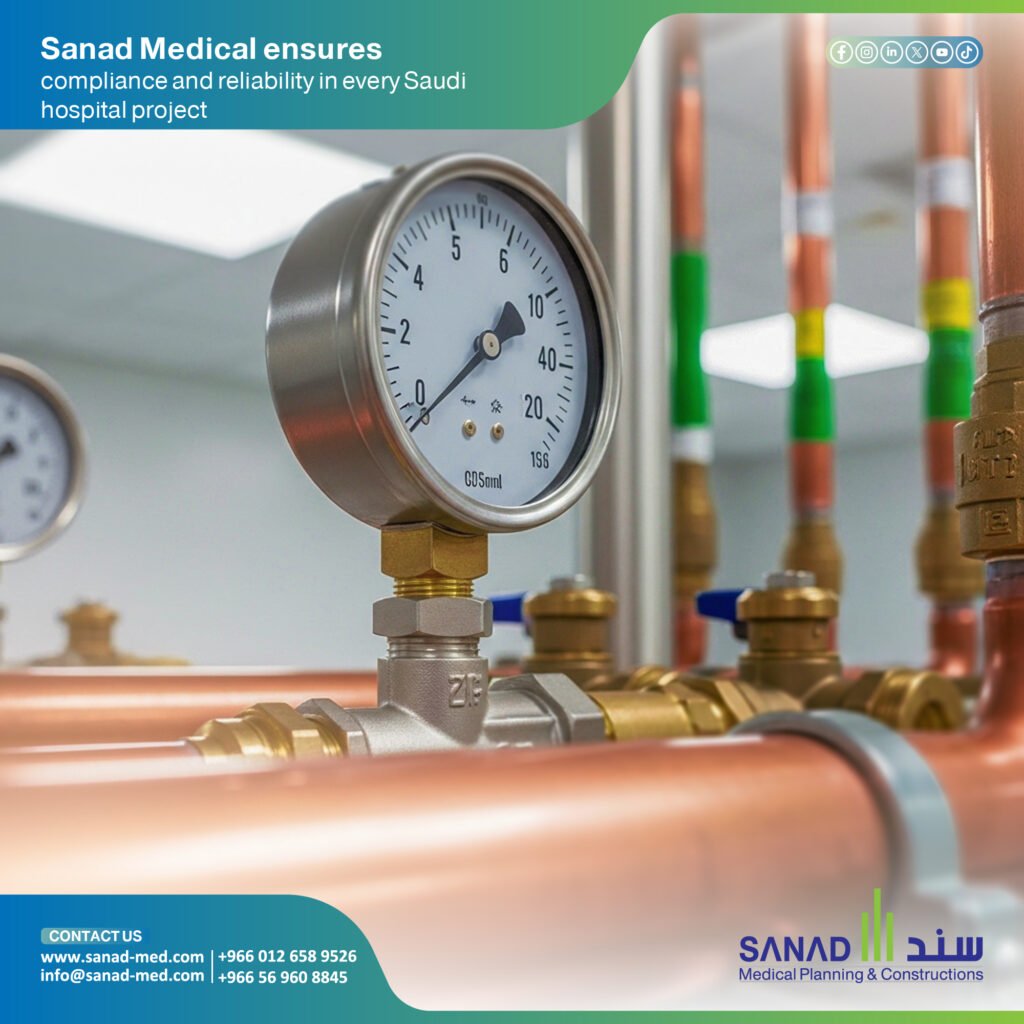

- Pipeline Network: The use of Medical Grade Copper Pipes is paramount. As the authorized agent for Tonoli (Italy), Sanad Medical utilizes pipes compliant with the EN 13348 standard, which are factory-cleaned and degreased to prevent spontaneous combustion in the presence of high-pressure oxygen (O_2).

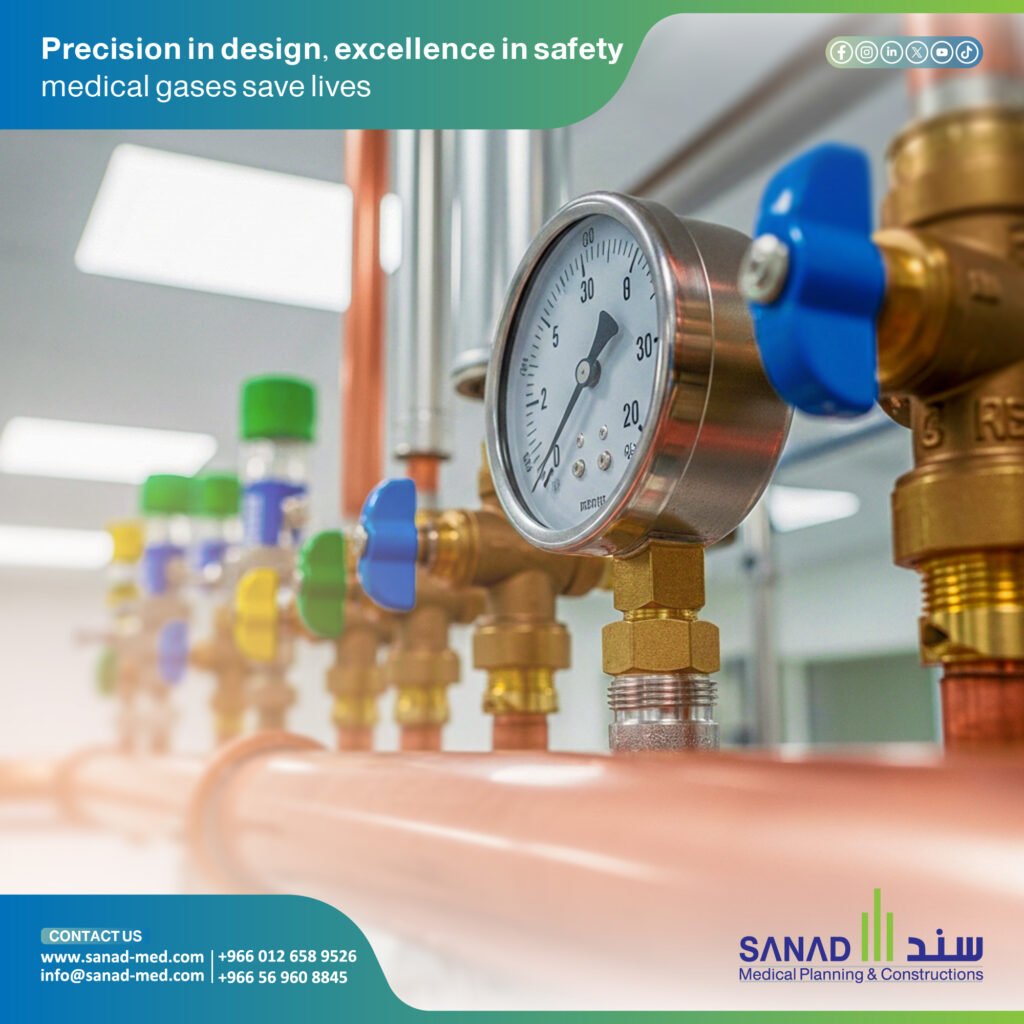

- Zone Valve Service Units (ZVSU): Allowing for the isolation of specific hospital wings for maintenance without interrupting the entire facility.
- Monitoring and Alarm Systems: Digital panels that provide real-time data on pressure levels and flow rates, alerting staff to any deviation from safety parameters.
Engineering Design Standards in Saudi Arabia
To achieve excellence, Sanad Medical strictly adheres to global and local codes, ensuring that every installation is “CBAHI-ready.”
1. NFPA 99 (Health Care Facilities Code)
The American standard followed widely in the Kingdom. It dictates everything from the spacing of pipe supports to the mandatory use of silver-brazing alloys.
2. HTM 02-01 (Health Technical Memorandum)
The British standard often used for specialized design and validation procedures, emphasizing system redundancy and labeling.
3. CBAHI and Saudi MOH Requirements
Local regulations in 2026 emphasize the “Patient Safety First” initiative. This includes rigorous testing and commissioning phases that must be documented and signed off by certified professionals.
Challenges in Implementing Medical Gas Systems
Executing a project in 2026 involves navigating complex engineering hurdles:
- System Integration: The MGPS must be carefully coordinated with HVAC (Heating, Ventilation, and Air Conditioning) and fire suppression systems. Sanad Medical uses BIM (Building Information Modeling) to detect and resolve “clashes” in the design phase, saving time and costs.
- Purity Maintenance: During installation, the pipes must be purged with Nitrogen (N_2) to prevent oxidation. Even a microscopic amount of carbon inside the pipe can contaminate the gas stream.
- Future Scalability: Modern hospitals grow. A well-designed system allows for future bed expansions without requiring a total overhaul of the central plant.
Why Partner with Sanad Medical?
The sensitivity of MGPS requires a specialized partner. Sanad Medical provides a turnkey solution that covers the entire lifecycle of the system:
- Precision Engineering: CAD and BIM designs that meet international codes.
- Premium Material Sourcing: Exclusive access to Tonoli degreased copper pipes, ensuring the highest level of chemical purity (Cu 99.9%).
- Expert Installation: Teams trained in the specific art of medical-grade brazing and system testing.
- Validation and Testing: Conducting particulate tests, cross-connection tests, and 24-hour pressure decay tests to guarantee 100% system integrity.
Conclusion: Anchoring the Future of Saudi Healthcare
Medical gas systems are the invisible yet indispensable lifelines of the Saudi healthcare sector. As the Kingdom moves toward the completion of the Vision 2030 healthcare goals, the focus on infrastructure quality will only intensify. By collaborating with specialized experts like Sanad Medical, hospitals can ensure they are equipped with an MGPS that is not only efficient and compliant but, most importantly, safe for every patient who enters their doors.
Frequently Asked Questions (FAQ)
Q1: What is the difference between industrial and medical copper pipes?
Medical copper pipes, like those from Tonoli, are specifically cleaned and degreased in the factory to meet EN 13348 standards. Industrial pipes may contain oil residues that can react violently with oxygen.
Q2: Why is Nitrogen Purging important during installation?
When brazing copper, high heat causes oxidation (black scales). By filling the pipe with Nitrogen, we prevent this oxidation, ensuring the gas remains pure when the system is commissioned.
Q3: Does Sanad Medical help with CBAHI accreditation?
Yes. Sanad Medical provides all necessary technical documentation, pressure test results, and certification required for the engineering portion of the CBAHI audit.
Q4: Can an existing hospital upgrade its MGPS?
Absolutely. We specialize in “live” upgrades, where we can extend or renovate medical gas networks with minimal disruption to ongoing clinical operations.
