Introduction: The Sanad Medical Philosophy of Absolute Safety
Radiation protection stands as the vital cornerstone of modern medical facility design. It is the primary shield protecting patients, clinical staff, and visitors from the hazards of ionizing radiation. As the Kingdom of Saudi Arabia accelerates its comprehensive healthcare transformation under Vision 2030, diagnostic and therapeutic radiology technologies have grown more powerful, making precise radiation protection architectures more critical than ever.
At Sanad Medical سند الطبية, we operate on a clear premise: a failure in radiation shielding is not just a commercial or operational setback—it is a direct risk to human life and institutional reputation. Despite clear international guidelines, many medical projects drop into common pitfalls during the design or installation phases. This leads to operational failures, licensing delays, and massive remedial expenses. This comprehensive guide outlines these critical mistakes and provides practical engineering solutions to guarantee a secure medical environment compliant with the Nuclear and Radiological Regulatory Commission (NRRC).

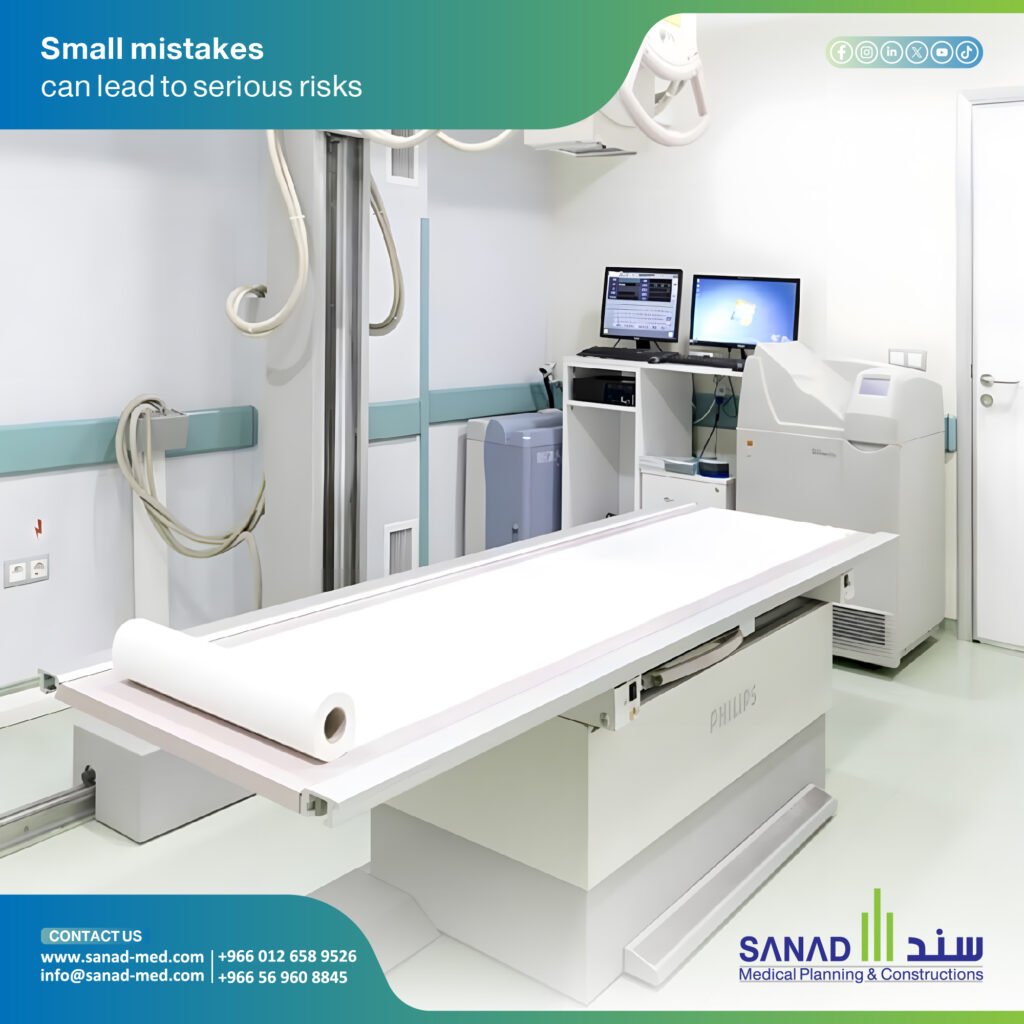

Understanding Radiation Protection in Medical Facilities
Radiation protection encompasses all engineering, structural, and administrative measures implemented to contain ionizing radiation within radiology, oncology, and nuclear medicine departments.
Standard corporate protocols deployed by Sanad Medical include:
- Comprehensive lead lining of walls, floors, and ceilings.
- Installation of specialized, certified lead doors and lead glass windows.
- Detailed sealing of structural seams, joints, and service penetrations.
- Pre-construction shielding calculations based on clinical parameters.
- Rigorous post-installation Radiation Leakage Testing.
The engineering required for these partitions varies profoundly depending on the targeted imaging modality, whether it is standard Digital Radiography (X-Ray), Computed Tomography (CT Scan), Catheterization Laboratories (Cath Lab), Fluoroscopy, or high-energy Nuclear Medicine suites.

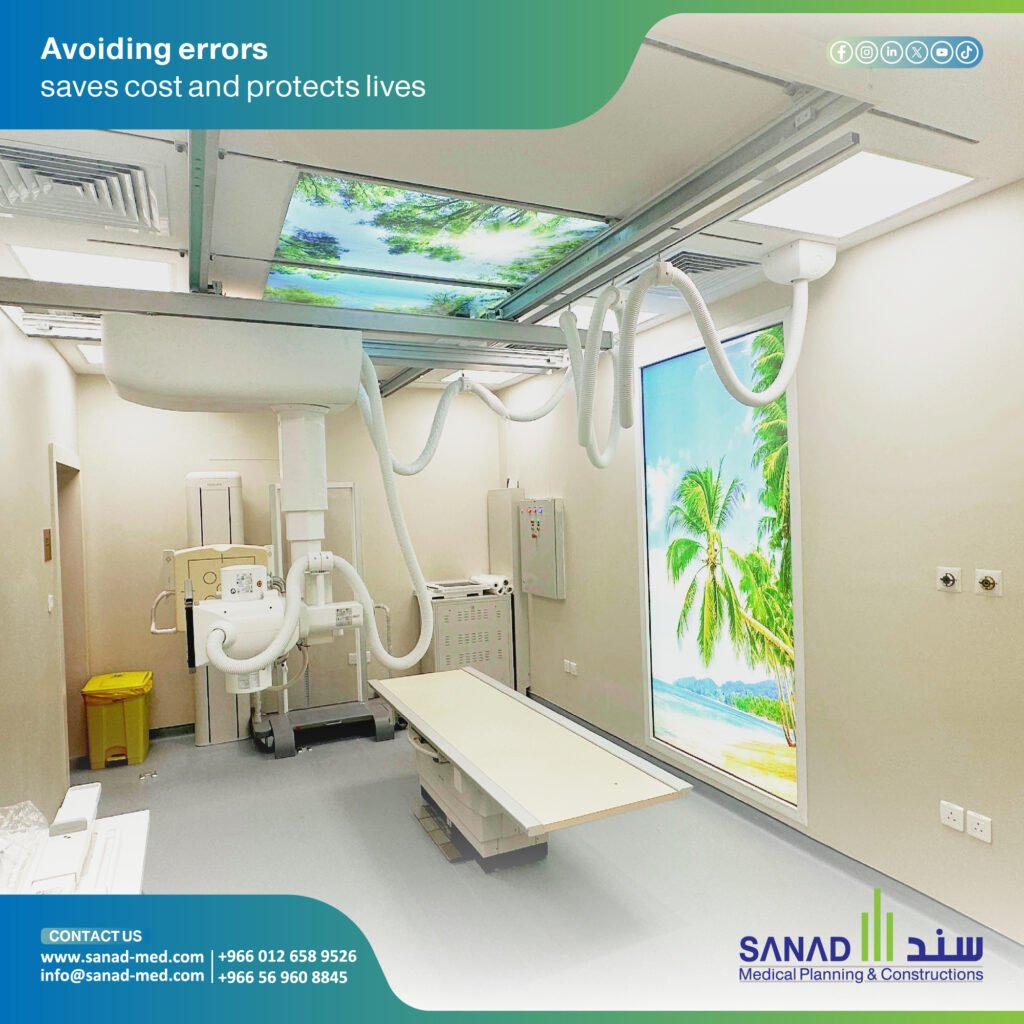

Critical Radiation Protection Mistakes and How to Avoid Them
1. Shielding Execution Without Site-Specific Calculations
One of the most widespread errors in medical construction is utilizing a standardized or “cookie-cutter” lead thickness for all radiology rooms across a facility.
- The Error: Every diagnostic machine possesses unique radiation output energies, beam directions, and daily operational frequencies—known in physics as the Workload (Workload).
- The Sanad Solution: A custom Radiation Shielding Calculation report must be developed for every single room before procurement begins. At Sanad Medical, our engineers calculate the precise lead-equivalence (mmPb) required by evaluating the machine’s maximum tube voltage (kVp), patient volume, and the occupancy factors of surrounding spaces (e.g., adjacent public corridors versus locked server rooms).
2. Neglecting Seams, Joints, and Service Penetrations
A room can feature thick lead sheets across all main walls and still fail inspection due to microscopic radiation “streaming” through unshielded structural weak points.
- The Error: Leaving electrical back-boxes, HVAC duct penetrations, data cables, and sheet junctions uninsulated with lead.
- The Sanad Solution: Our technical installation teams enforce a strict Overlap Protocol, ensuring a minimum sheet-to-sheet overlap of 10mm to 15mm. Additionally, all mechanical, electrical, and plumbing (MEP) penetrations are wrapped in custom lead baffle boxes, ensuring a continuous, unbroken barrier against radiation scatter.
3. Utilizing Non-Compliant or Substandard Raw Materials
Attempting to reduce initial capital expenditure by purchasing low-purity lead sheets or uncertified shielding products invariably results in long-term financial and regulatory failure.
- The Error: Using lead with inconsistent material density, uncertified local wood doors with manual lead sheet attachments, or imported glass lacking verified density validation.
- The Sanad Solution: Quality is a non-negotiable metric of safety. Sanad Medical source-verifies all shielding materials, utilizing high-purity (99.9%) lead linings, custom industrial-manufactured lead-lined doors, and certified lead glass accompanied by authentic Mill Test Certificates (MTC) that seamlessly pass Saudi regulatory audits.
4. Poor Coordination Between Architectural and Medical Teams
A breakdown in communication often occurs when medical equipment vendors alter the position or model of a machine midway through construction without notifying the engineering contractor.
- The Error: Executing structural lead lining based on outdated blueprints, resulting in the primary radiation beam striking a wall designed only for secondary scatter protection.
- The Sanad Solution: We deploy an integrated project management framework. No lead lining is fixed until final sign-offs are secured between the MEP consultants, the medical equipment supplier, and our radiation safety teams, ensuring complete alignment between design intent and physical deployment.
5. Omitting Post-Construction Radiation Leakage Surveys
Assuming a room is completely safe simply because the contractor finished installing the lead sheets is a dangerous operational oversight.
- The Error: Moving directly to clinical operations without verifying the shielding with an actual radiation source during commissioning.
- The Sanad Solution: The Radiation Leakage Test is an absolute legal and functional prerequisite. Sanad Medical uses state-of-the-art, calibrated ionization chambers and dosimeters to survey every square centimeter of the finished room under active load conditions, generating the certified technical reports needed for immediate NRRC and MOH licensing.
6. Ignoring Future Modality Upgrades and Scalability
Designing a radiology space strictly for the facility’s immediate, low-energy needs without considering future institutional expansion.
- The Error: A hospital wanting to upgrade an ordinary X-ray room to a high-capacity CT Scan space three years down the line, only to find they must completely demolish the existing walls to thicken the lead.
- The Sanad Solution: We encourage healthcare developers to incorporate scalability factors into their initial structural planning, slightly over-shielding key boundary partitions to accommodate higher-output future technologies without disrupting active clinical workflows.
Why Partner with Sanad Medical (سند الطبية)?
Successful radiation shielding requires an advanced combination of health physics and heavy structural engineering. Sanad Medical provides turnkey infrastructure development tailored to the actual operational metrics of your facility, guaranteeing:
- Highly accurate, certified shielding blueprints.
- Premium materials fully compliant with SASO and international standards.
- Master-level technical installation that eliminates installation gaps.
- Comprehensive testing for fast-track NRRC and CBAHI approval.
Frequently Asked Questions (FAQ)
- Why is healthcare radiation protection so heavily regulated in Saudi Arabia?
To eliminate occupational exposure for medical personnel and protect the public from cumulative biological tissue damage, while ensuring alignment with global safety frameworks. - Can we use regular concrete instead of lead for X-ray rooms?
Yes, but it requires massive wall thicknesses (often 20cm to 30cm of dense concrete), which severely compromises internal floor space. Lead lining achieves superior attenuation with a profile of just a few millimeters. - What are the most common failure points during an NRRC inspection?
Unshielded electrical outlets, structural gaps around the door frame, and seams where lead sheets meet without a proper overlap. - When should a radiation shielding consultant be brought onto a project?
During the initial schematic architectural phase, long before concrete is poured or drywall partitions are framed.
Conclusion
Avoiding structural shielding mistakes from day one protects your clinical capital, eliminates reconstruction liabilities, and guarantees a swift path to commercial operation. Partnering with a specialized medical engineer ensures your facility enters the market with a foundation of total safety.
Are you developing or expanding a medical imaging department in Saudi Arabia?
The engineering team at Sanad Medical (سند الطبية) provides comprehensive, certified radiation shielding solutions built for compliance and safety.
